Description

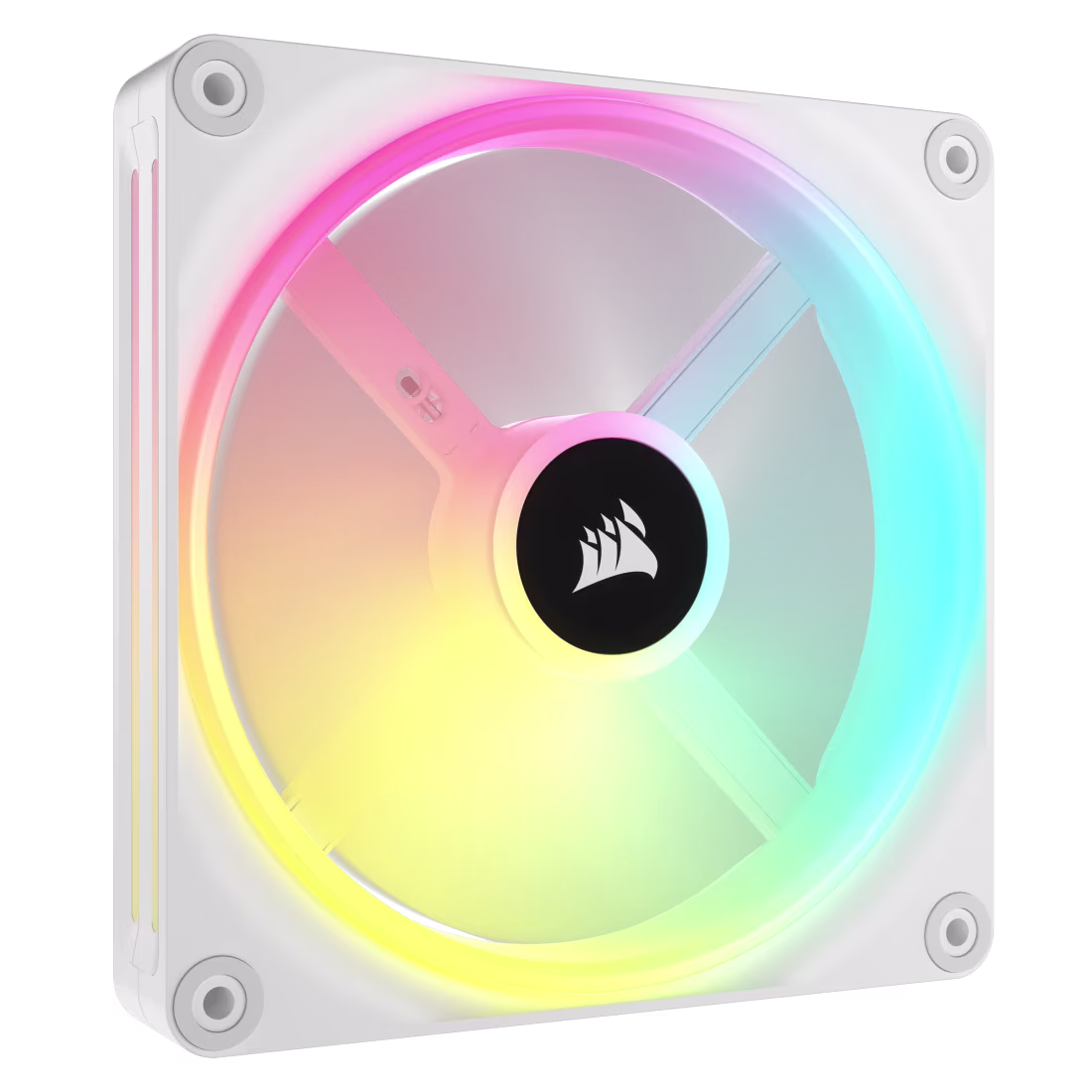

iCUE LINK QX140 RGB

Add a CORSAIR iCUE LINK QX140 RGB 140mm PWM Fan Expansion Kit to your system for even more lighting with four distinct light zones. Requires an iCUE LINK System Hub and cables

BUILD BETTER. BUILD SMARTER.

Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.

THE EASY WAY TO BUILD A PC

Reduce cable clutter with a network of smart, interconnected components.

LINK YOUR COMPONENTS

The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.

UNITE YOUR SETUP

Each component connects directly to the next, creating a chain of devices.

STACK FANS AND CONNECT FREELY

Connect to iCUE LINK System Hub or compatible components.

Exclusive Time Warp Lighting Mode

Freeze your fans in time with RGB lighting.

MAGNETIC DOME BEARING

Exceptionally low noise with almost no friction.

SMART AND SOPHISTICATED

Light up your system from any angle and use exclusive lighting modes such as the strobing Time Warp. Take advantage of smart component features such as temperature sensors and two-way communication with the iCUE LINK System Hub

BRILLIANT LIGHTING FROM ALL ANGLES

Each fan boasts 34 RGB LEDs, spread across two distinct light zones on either side.

TEMP SENSOR IN EVERY SMART FAN

A built-in temperature sensor and a dedicated MCU in each fan open up more sophisticated control options over your system.

KEEP IT COOL

Powerful PWM-controlled fan speeds from 480 RPM up to 2,000 RPM, pushing up to 82.5 CFM of air with 3.5mm-H2O of static pressure.

ZERO RPM MODE

PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads.

Specifications

Weight	0.367kg
Fan Airflow	12.1 – 82.5 CFM
Fan Model	QX SERIES
Flow Type	STATIC PRESSURE
LINK Compatibility	RGB
Fan Static Pressure	0.19 – 3.5 mm-H2O
Speed	400 – 2000 RPM
Sound Level	10 – 37 dBA
PWM Control	Yes
Power Draw	1.02A
Package Quantity	1
LED Color	RGB
Fan Size	140mm x 25mm
Bearing Type	Magnetic Dome
