Description
SPECIAL ORDER: Contact our sales department to confirm stock availability.

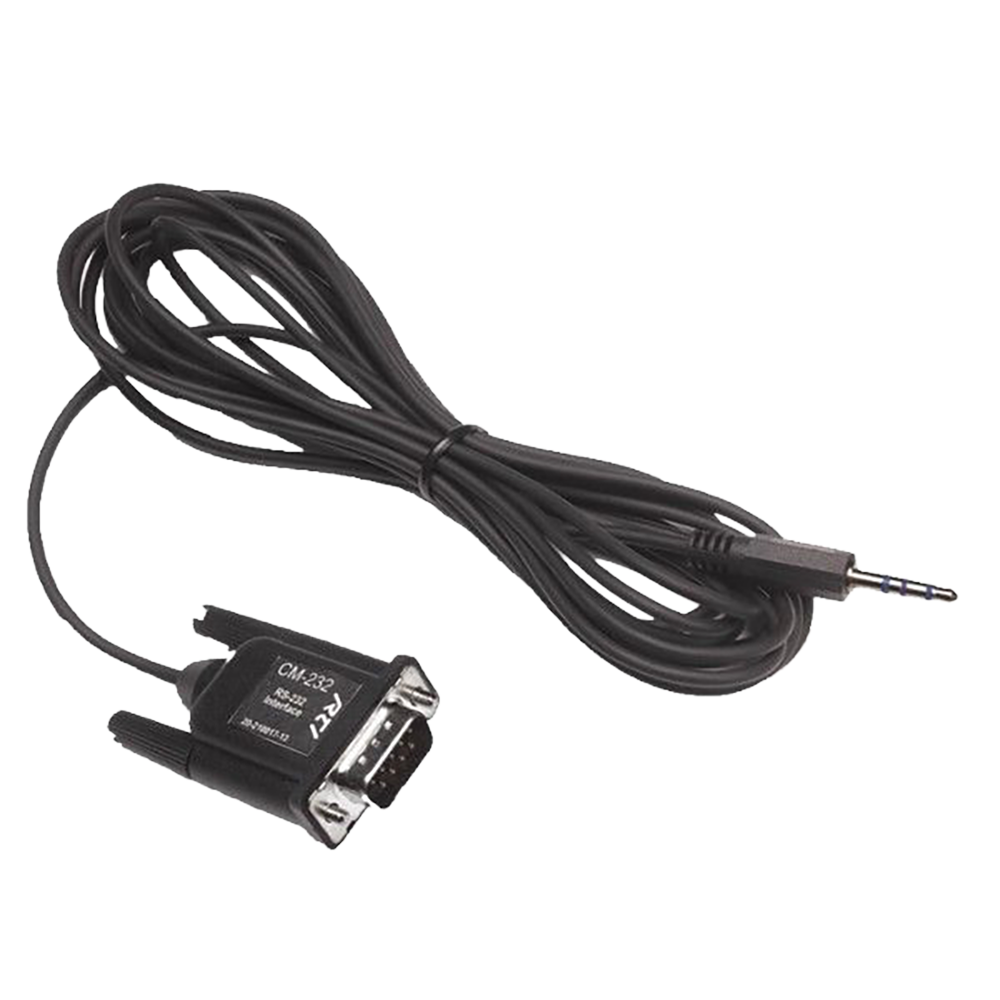

The CM-232 communication module provides an RS-232 interface to almost any RS-232 enabled device. It attaches to an RTI control system such as the XP-6s Control Processor on one end, and a device’s DB-9 serial port connector on the other end. The CM-232 is capable of one-way transmission (no receive function is supported) of user-defined character or binary strings. These character strings, as well as the baud rate, parity, and bit structure are programmed using RTI’s Integration Designer software package.
Key Features
- Connects to the output ports of the control processor or expansion module (such as XP3/XP6/XP8s/PCM-4)
- Allows the control processor to send commands to almost any RS-232 enabled device
- Software selectable baud rate up to 115.2K (depending on control processor)
- Industry standard DB-9 male connector
- No power supply required – Power is supplied by the output ports
- User-definable output strings using Integration Designer® software
downloads
Specification
| Baud Rate | Software Selectable (Depends on attached control system) |
| Cable Length | 12 Feet (3.7 m) |
| Connector | DB-9 Male |
| Pins Used | GND, TXD, DTR (tied high) |
| Dimensions (W x H x D) | 1.3″ (33mm) x .5″ (14mm) x 2″ (51mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
